Description
Model NO.
Z01
Material
Steel
Type
Aid Standing Wheelchair
Braking System
Full Automatic Electromagnetic
Front Tires
18″X2.5/64-355
Rear Tires
2.5″X4
Net Weight
125kgs
Battery
12V 20ah X4 PCS
Carton Size
108*80*121cm
Brake Way
Automatic Electromagnetic Brake
Max Load
150kg
Driving Distance
50km
Climbing Slope
12 Degree
Pushrod Motor
Linix DC 3500nx3 DC 6000nx1
Driving Motor
Mtm DC 320wx2PCS
Controller
Pg Vr-2Â Pg R-Net
Charger
Input: 110-230V/AC; Output:24V/DC
Gross Weight
175kgs
Transport Package
Wood Package
Specification
1120x660x1100mm
Trademark
JBH
Origin
Nanjing Jiangsu China
HS Code
87139000
Production Capacity
500PCS Per Month

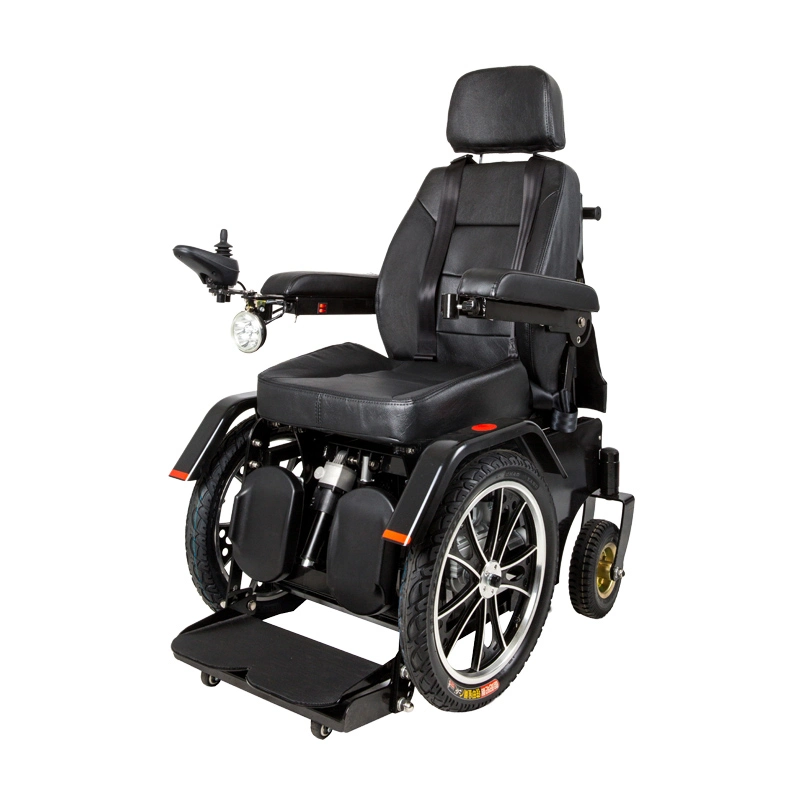

Heavy Duty Electric Wheelchair Sit To Stand





 Z01 Electric Standing Power Wheelchair video
https://jbhwheelchair.en.made-in-china.comTechnical Data of Z01 Power Standing Wheelchair
      Z01 Electric Standing Power Wheelchair videohttps://jbhwheelchair.en.made-in-china.comTechnical Data of Z01 Power Standing Wheelchair
| Name | Luxury power standing&lying wheelchair | Pushrod motor | LINIX DC 3500Nx3 DC 6000Nx1 |
| Unfold size L×W×H | 1120x660x1100mm | Driving Motor | MTM DC 320Wx2PCS |
| Braking system | full automatic electromagnetic | Battery | 12V 20AH x4 pcs |
| Front tires | 18″x2.5/64-355 | N.W | 125kgs |
| Rear tires | 2.5″x4 | Package size L×W×H | 108*80*121cm , 1 set/wood case |
| Loading capacity | 150kgs | Charger | Input: 110-230V/AC; output:24V/DC |
| Driving range | 50Km | Armrest height: | 360mm |
| Seat width | 450mm | Seat height: | 560mm |
| Seat depth | 450mm | Backrest height |
600mm |
| Max climbing grade | 12° | Controller | PG VR-2 PG R-NET |
 Heavy Duty Electric Wheelchair Sit To Stand
1. with this standing wheelchair, the paraplegia patients can stand up, lie down, sit, move and use the toilet by themselves.
2. Help the patient to stretch his body and joint, which strengthens cardio-pulmonary function and prevent bedsore.
3. Certificates: CE;FDA;ISO9001; ISO13485;
Warranty:
| Â Z01 Standing Wheelchair Frame | Three Year |
| Acid-Lead Battery | One Year |
| Motor | One Year |
| Controller | One Year |
| Other Spare Parts | Six Months |
